TV EXPLORER NG: Universal TV and Spectrum analyzer

Introducing the next-generation TV EXPLORER, now with native 4K support, DVB-S2x, DVB-T2, and ATSC 3.0 compatibility. Its multi-touch user interface offers smartphone-like intuitiveness, making navigation effortless.

Datasheet

REQUEST A QUOTE

Do you need more help?

The TV EXPLORER NG is the brand new version of the TV EXPLORER, the TV analyzer that was there for the switch to digital broadcasting. Now that we're in a totally digital world, with 4K taking off and DVB-S2x, DVB-T2, and ATSC 3.0 arriving, the new TV EXPLORER NG offers native support for the most recent broadcasting standards.

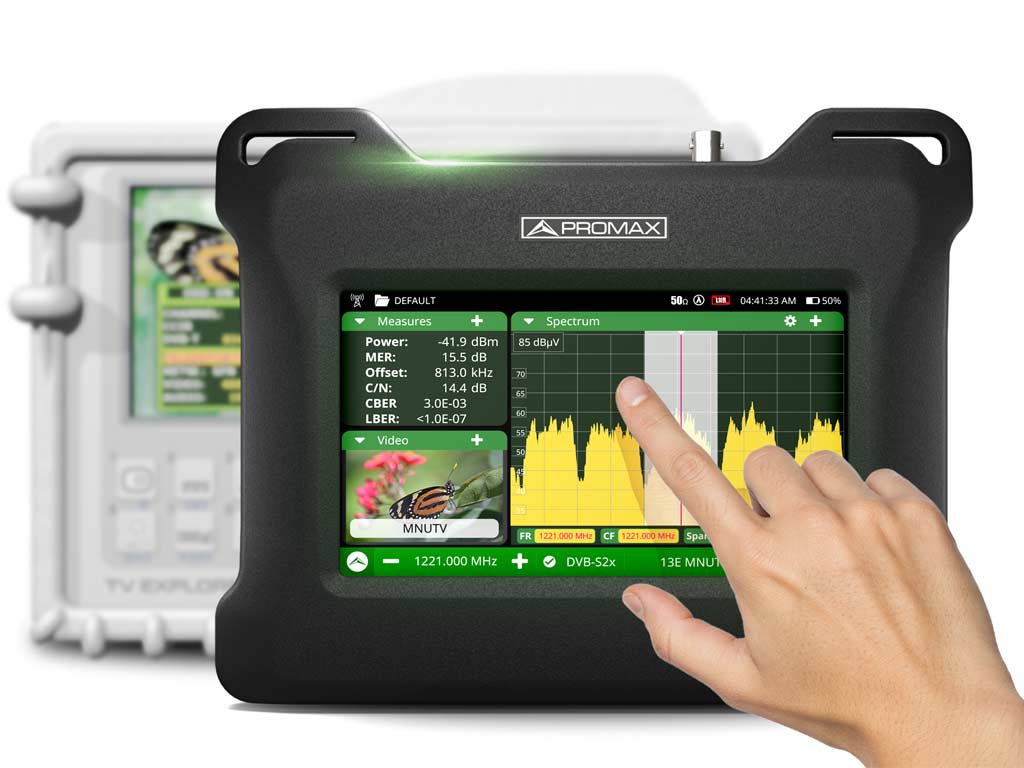

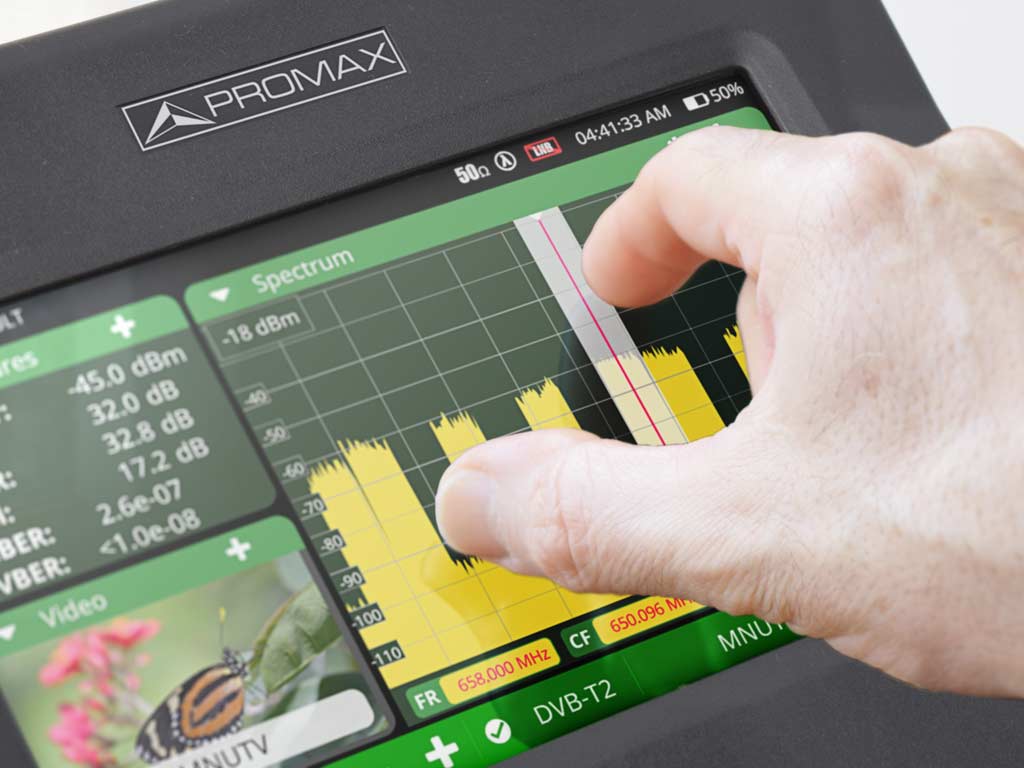

With its docking panel-based user interface with multi-touch screen makes it exactly as intuitive as a contemporary instrument should be. Furthermore, its multi-core processor ensures an immediate response. Simple like a TV EXPLORER, agile as your mobile phone.

Featuring all the necessary technologies for today's landscape: Second-generation DVB standards (including DVB-S2x), ISDB-T/Tb, ATSC, and optionally ATSC 3.0. It also includes compatibility with HbbTV (Hybrid Broadcast Broadband TV) technology and effortlessly decodes video encoded in HEVC H.265, even in UHD 4K HDR 10-bit, maintaining full performance.

Instantly generate measurement reports and ensure compliance with major governmental regulations like ICT-2 (Spain), RITEL (Colombia), or DUCTOS (Chile).

BROADCAST STANDARDS
Digital terrestrial TV / Radio	DVB-T, DVB-T2 (T2-base, T2-lite), ISDB-T/Tb (full seg / 1sec), DAB, DAB+
Digital cable	DVB-C, DVB-C2, J.83 annex-B, 16/64/256-QAM
Digital satellite	DVB-S, DVB-S2 VCM/ACM/CCM, DVB-S2x, DSS
Analogue	Analogue terrestrial (PAL, SECAM, NTSC), FM RDS

SPECTRUM ANALYZER	From 5 to 1000 MHz (Terrestrial) From 950 to 2180 MHz (Satellite)

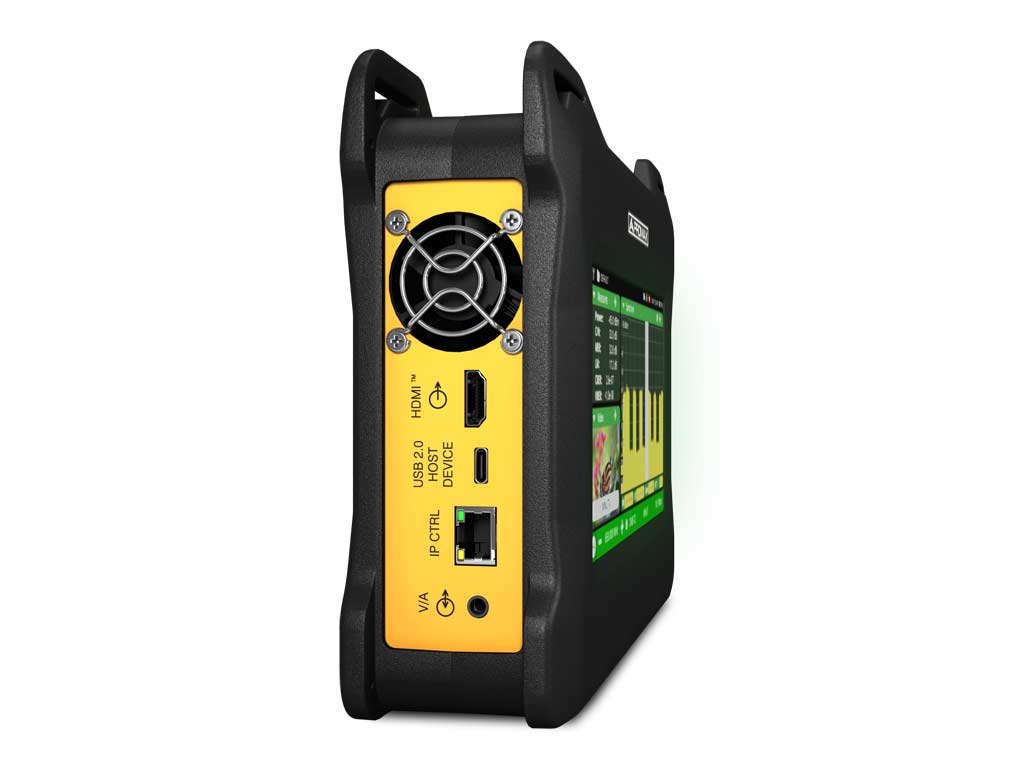

INPUTS AND OUPUTS	Universal RF input (BNC, female 75 Ω) Analogue audio/video input (jack 3.5 mm) Salida HDMI™ (v1.4b hasta 3840x2160 pixels @30 Hz) USB 2.0 master/device (Tipo C). Mass storage and remote control commands Ethernet (RJ45) for webControl and remote control commands Optical input (FC/APC, female) Stereo headphone audio output (jack 3.5 mm) USB 3.0 host (A-type, USB-CDC devices)

FUNCTIONS

Constellation diagram
Dynamic echoes analysis
StealthID (instant identification of tuning parameters)
PLS (Physical Layer Scrambling)
Ultra fast Spectrum analyzer
4K decoder
MAX and MIN hold
FM RDS measurement and decoding
Screenshots and Datalogger for measurement reports
WiFi
Remote control (webControl)
MER by carrier
GPS (included) coverage analysis
TS recording
ALP recording
Full band optical power measurement
8 GB internal memory, expandable vía USB
FM stations discovering.
Blind Scan search.

OPTIONS	ATSC 1.0 and ATSC 3.0 standards. Optical fibre: Selective optical power meter DAB/DAB+ digital radio advanced measurements FM radio advanced measurements
